Aluminum Alloy Load Cell Sensor 300g-3kg for Electronic Scales

Produktdetails:

Herkunftsort:	China
Markenname:	RJ
Zertifizierung:	CE/ROSE
Modellnummer:	RJ

Ausführliche Information

Herkunftsort:

China

Markenname:

Zertifizierung:

CE/ROSE

Modellnummer:

Funktionen:

Sensor aus Aluminiumlegierung

Theorie:

Sensor für Dehnungsmessgeräte

Kapazität:

300 g, 500 g, 750 g, 1 kg, 2 kg, 3 kg

Material:

Aluminiumlegierte Lastzelle

Größe:

45*9,3*6 mm

Nennleistung:

00,7 ± 0,1 mV/V

Hervorheben:

High Light

Hervorheben:

aluminum alloy load cell sensor

300g-3kg load cell sensor

electronic scale load cell sensor

Handelsinformationen

Min Bestellmenge:

Preis:

$3-10

Verpackung Informationen:

Karton oder hölzerne Kiste

Lieferzeit:

5-8 Arbeitstage

Zahlungsbedingungen:

Akkreditiv, Dokumenteninkasso, Dokument gegen Zahlung, Überweisung, Western Union

Versorgungsmaterial-Fähigkeit:

2000PC/Month

Produkt-Beschreibung

Electronic scale weight sensor load cell 300g 500g 750g 1kg 2kg 3kg Load cell for coffee scales

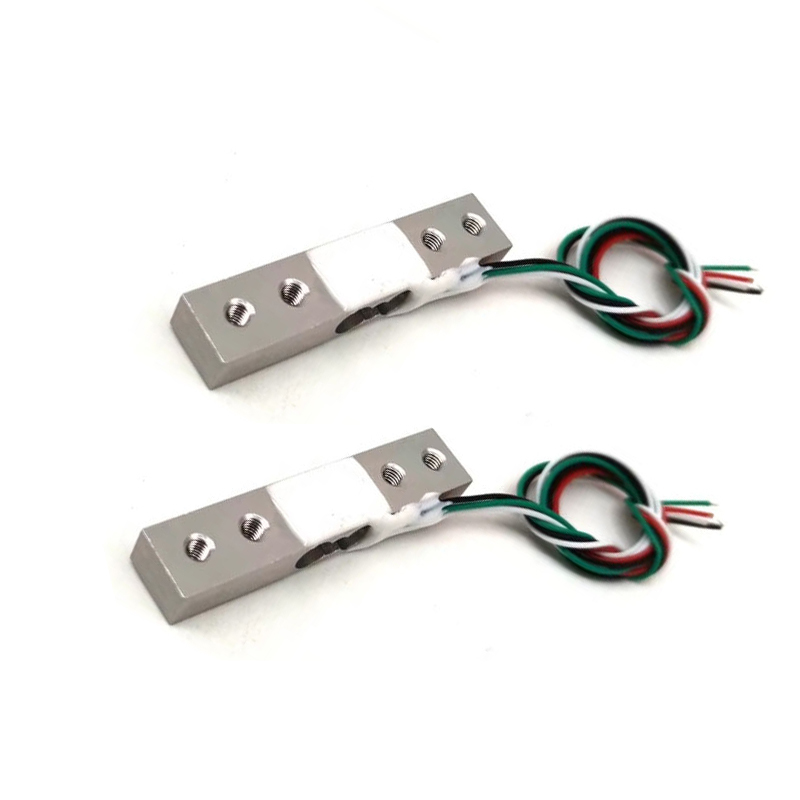

Aluminum Alloy Load Cell Sensor 300g-3kg for Electronic Scales 0

Model	RJ
Capacity	300g, 500g,750g, 1kg, 2kg, 3kg
Comprehensive Error	0.05 % F.S
Output sensitivity	300g: 0.7±0.15MV/V , 500g-750g: 0.8±0.15 MV/V, 1kg-3kg: 1.0±0.15 MV/V
Non-linearity	0.05 (%F.S.)
Repeatability	0.05 (%F.S.)
Hysteresis	0.05 (%F.S.)
Creep	0.1 [(3 min)%F.S.]
Zero Output	± 0.1 m V/V
Temp. Effect on Zero	0.2(%F.S/10℃)
Temp. Effect on Span	0.05(%F.S 10℃)
Input Resistance	1000 ± 10 Ω
Output Resistance	1050 ± 100 Ω
Insulation Resistance	≥ 2000 MΩ
Excitation Voltage	3~10Vdc
Operating Temperature range	-10~+40℃
Four corner error	± 0.1% F.S
Safe overload	120% F.S
Ultimate Overload	150% F.S
Cable length	Φ0.6 x 110 mm
Wiring	Excitation +: Red, Excitation-: Black Signal+: Green, Signal- : White
Application	Jewelry scale, small weight scale, kitchen scale, force test

Aluminum Alloy Load Cell Sensor 300g-3kg for Electronic Scales 1

Packing & Transport

Aluminum Alloy Load Cell Sensor 300g-3kg for Electronic Scales 2
