High-Performance 50kg Half-Bridge Load Cell for Body Scales - Xg

Produktdetails:

Herkunftsort:	China
Markenname:	RUIJIA
Zertifizierung:	CE
Modellnummer:	RJ

Ausführliche Information

Herkunftsort:

China

Markenname:

RUIJIA

Zertifizierung:

Modellnummer:

Ausgangssignalart:

Analogtyp

Besonderheit:

Tieftemperaturbeständig

Material:

Edelstahl

Zertifizierung:

RoHS

Maßgeschneidert:

Maßgeschneidert

IP-Bewertung:

IP65

Hervorheben:

High Light

Hervorheben:

50kg half-bridge load cell

micro load cell for scales

high-performance load cell with warranty

Handelsinformationen

Min Bestellmenge:

Preis:

USD1.5 ~2.5/piece

Verpackung Informationen:

Standard -Exportverpackung

Lieferzeit:

5-8 Werktage

Zahlungsbedingungen:

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Versorgungsmaterial-Fähigkeit:

1000 Stück/Stücke pro Monat

Produkt-Beschreibung

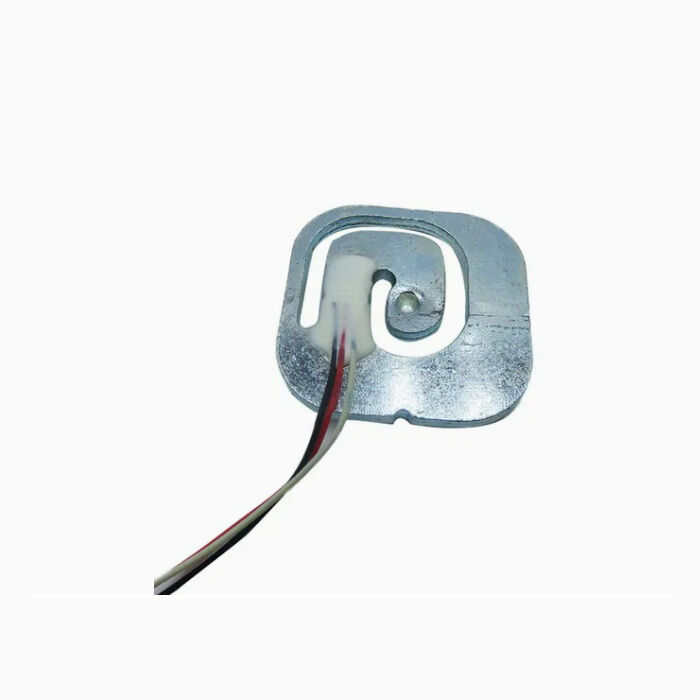

High-Performance 50kg Half-Bridge Load Cell for Body Scales - Xg

High-Performance 50kg Half-Bridge Load Cell for Body Scales - Xg 0

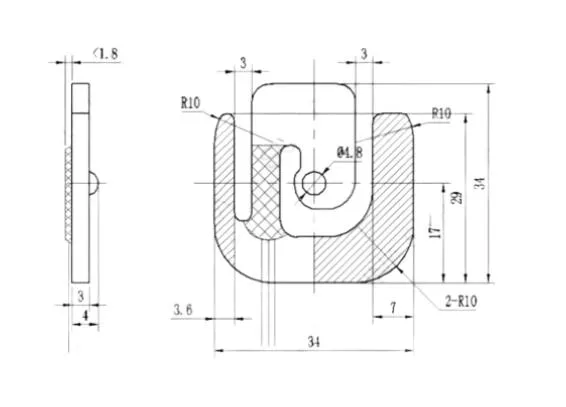

Product Size Drawing

Product Parameter List

capacity	Kg	50Kg
Rated Output	mv/v	1.0±0.2
Non-linearity	%F.S	0.3
Hysteresis	%F.S	0.3
Repeatability	%F.S	0.3
Creep	%F.S/3min	0.3
Temp.effect on zero	%F.S/10ºC	0.3
Temp.effect on span	%F.S/10ºC	0.3
Zero balance	mv/v	±0.2
Input impedance	Ω	1000±10
Output impedance	Ω	1000±5
Insulation resistance	MΩ	≥2000(100VDC)
Recommended excitation voltage	VDC	3~12
Allowed excitation voltage	VDC	5~15
Compensated temp.Range	ºC	-10ºC~+40ºC
Operating temp.Range	ºC	-20ºC~+60ºC
Safe overload	%F.S	120
Ultimate Overload	%F.S	150
Connection	Excitation: White:E+ Black:E-
Connection	Signal: Red:S+

Company Information

High-Performance 50kg Half-Bridge Load Cell for Body Scales - Xg 2

Ruijia is a technical service enterprise specializing in force measurement technology research, product R & D, production, sales and service. It is mainly engaged in micro force sensors, high-precision load cells, S-type sensors, cantilever sensors, multi-dimensional force sensors, tension sensors, transmitters R & D and production of control instruments and provide system engineering control solutions. The company has modern and spacious workshops, high-quality production and testing equipment, professional R & D team and perfect management system to provide reasonable and practical solutions for our customers. With years of understanding and understanding in the field of automation, the company has always adhered to the enterprise operation concept of "user first", built a professional team in the field of automation, and provided customers with stable quality products and pre-sales and after-sales technical services. We always adhere to the tenet of independent innovation, only good products and scientific management, and always adhere to providing perfect products and system solutions, which is highly respected in our field; Constantly change and provide customers with excellent value-added services.

Our advantages

1, Professional	17+years industrial experience,Know your needs quickly
2, Wide Product Variety	include:encoders,sensors,couplings, and other instruments widely used in CNC machinery, textile machinery, steel rolling machinery, linear guide system, hydraulic system, lifting machinery,servo motor and so on
3, High cost-performence	we can also customize replacement to the same specifications as the brand you need
4, Good service	If you have any question,Welcome to feel free to contact
